246
PATCH CORDS & MOLDED CABLE ASSEMBLIES
MULTIPIN INTERCONNECTORS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

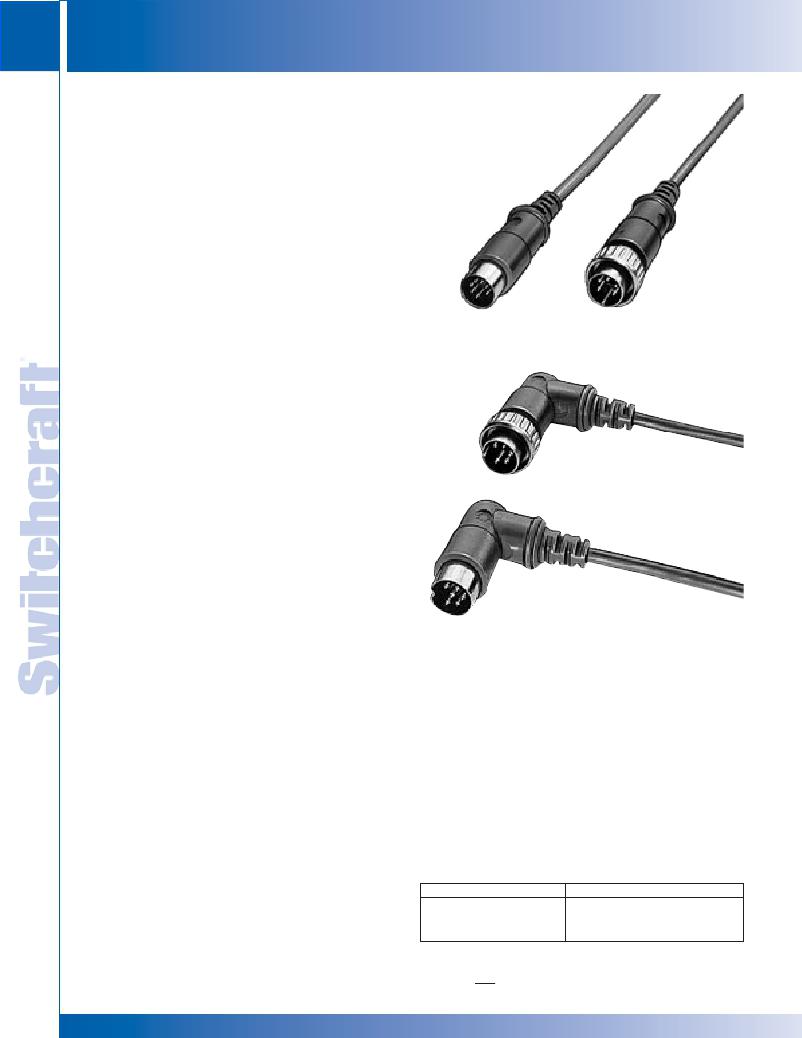

MOLDED CABLE ASSEMBLIES WITH DIN PLUGS
STYLES RA300 AND ST300
APPLICATIONS
? Computer
? Data Communications
Style ST307
Termination Code: 307
?
?
?
?
Instrumentation
Medical Systems
Process Controls
MIDI (Musical Instrument Digital Interface)
FEATURES
? Long life
? 7 different pin configurations: versatile circuitry
? Fully molded plugs sealed against contamination
(moisture, dust, dirt)
? Fully shielded: plugs with interference
protection/ common ground-shield
? Strain relief: protects internal wire connections
? Flex relief: molded integral with handle
for extra protection. No exit stress failures
? Locking: 30° twist locking for anti-vibration
protection and ease of engagement
? Straight and coil cords: stock and custom styles,
colors, lengths
? Shielded or unshielded cables: stock and custom
styles, colors, lengths
? Molded through-panel cable relief: extra
cable protection
? Custom wiring/ keying: gives extra choice in
mounting and circuit selection
? Custom contact plating: precious and other metals
? Custom logo: your identification on molded plugs
? 100% tested for continuity, shorts, appearance,
voltage breakdown (250 or 500 V)
COMPLETE SHIELDING SYSTEMS
Switchcraft also offers shielded DIN receptacles for use with
shielded molded cable assemblies. Together they provide a
valuable design tool to suppress EMI interference to permit
you to meet strict requirements of FCC Docket 20780.
ORDERING
1. Order by part number from guide on page 251.
2. For special order items, contact Switchcraft with details.
SPECIFYING NOTE: See Connector Section of Switchcraft’s
Engineering Design Guide for mating receptacles.
Style ST324
Termination Code: 324
Style RA374
Termination Code: 374
Style RA356
Termination Code: 356
Switchcraft DIN molded cable assemblies meet increased
demand for modern, field-tested connections for a wide range
of electrical/electronic applications. Connectors are DIN
(Deutsche Industrie Norm) circular type, male or female (lock-
ing or non-locking) with 3 to 8 pins/contacts. Units are molded
and protected with a rugged handle, and are fully shielded and
equipped with advance design cable relief. Switchcraft cable
assemblies and mating receptacles adhere to strict
requirements of FCC Docket 20780 and offer fully shielded
links for data and instrumentation applications of all kinds.
SHIELDING EFFECTIVENESS
Effectiveness of shielding is frequency-dependent; as
frequency increases, more shielding is required to maintain
comparable shielding effectiveness. The chart below
delineates shielding effectiveness with molded cable assemblies
with 100% foil shield cables and shielded DIN connectors.
Frequency Range MHz
30-500
60-400
500-800
Shielding Effectiveness, dB
-30
-20
-10
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
